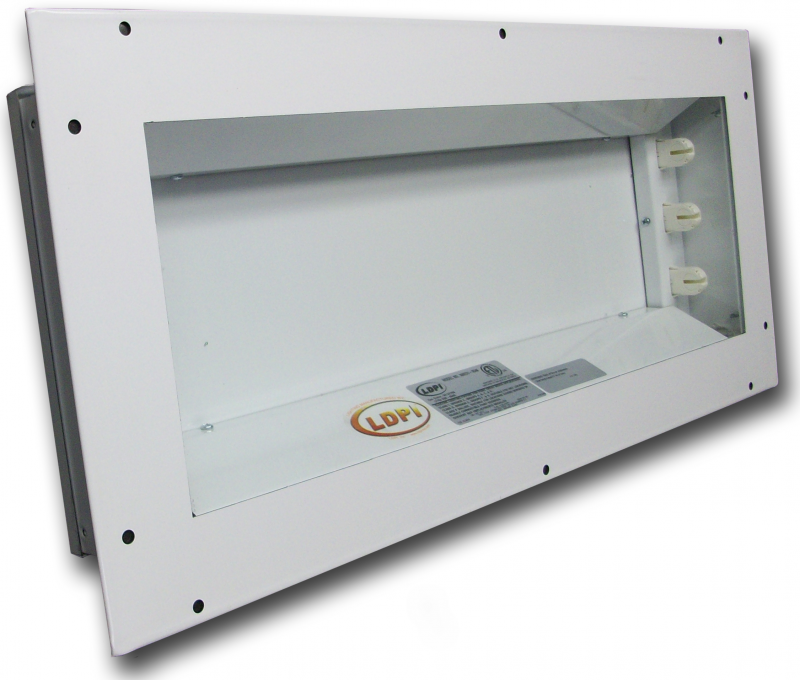

400 Panel Mount Rear Access Paint Booth Fluorescent Light Fixture

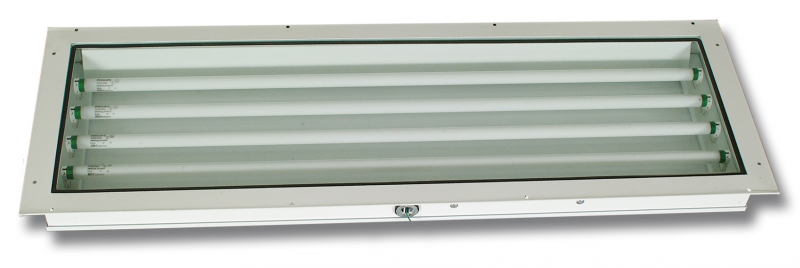

The 400 Series Rear Access product is an ideal paint spray booth product when a rear access fixture is desired. The 400 Series is also a vapor proof product with an ETL listing of Class I Division 2 rating. ETL listed for U.S. and Canada. This series now has a 2’ fixture as well as the 4’ fixture cataloged. The 4’ fixture comes in 2, 4 & 6 lamp with the following lamp options: T8 32W & T5HO 54W lamps. The 2’ - 3 lamp fixture uses (3) T8 17W lamps. Lamps not included. LAMPS SOLD SEPARATELY (Multiple voltages available, consult factory). CAN SHIP VIA UPS 2 & 4 Lamp ONLY. Listed for locations having deposits of readily combustible paint residues. Meets UL 844 standards for hazardous locations. Meets UL 1598 Standards for wet/damp locations. Meets NFPA 33 standards for spray applications using flammable or combustible materials.

400  |  Rear Access Paint Booth Fluorescent Light Fixture
Lighting Applications
  • Paint Spray Booth
  • Powder Coating Line/Booth
  • Blast Booths
  • Clean Rooms
  • Sanding Areas
  • Prep, Inspection Areas
  • UL844 (ClassI Div.2 / ClassII Div.2)
  • UL1598
  • Paint Spray Listed
  • Wet/Damp
  • NFPA33
Lamps T8  /  T8HO / T8HLO
Output 17 to 54 Watts
Ambient -18°C to 40°C
