260  |  Panel Mount Vapor/Dust Proof Fluorescent Light Fixture
Available For Quick Ship

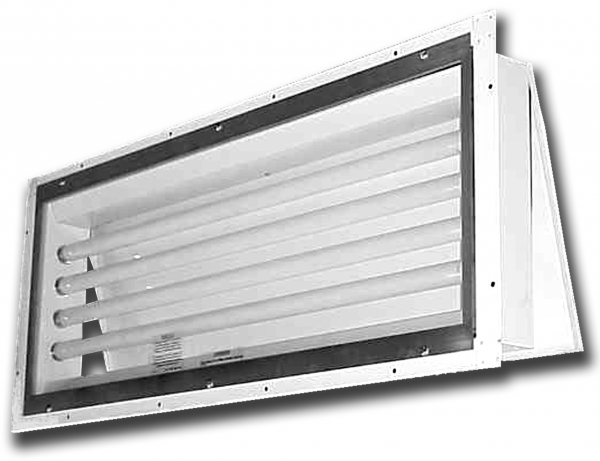

260 Panel Mount Vapor/Dust Proof Fluorescent Light Fixture

The 260 and 261 Series is a product designed specifically for Paint Spray Booths.
These 4 lamp 4’ fixtures are available in 32 watts.

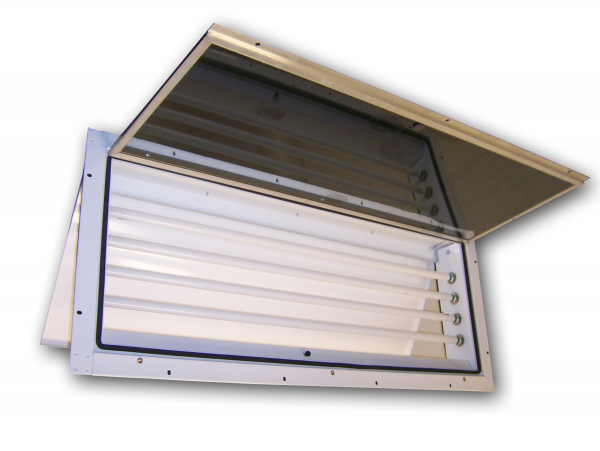

The 260 Series allows for both Front and Rear access using a paint spray cutoff switch when the front door frame is opened.
The 261 Series is a rear access only fixture and does not require paint spray cutoff.
Both units carry multiple listings from ETL for Class I Div. 2 & Class II Div. 2 applications.
Must be mounted hinge side up. Lamps not included.
LAMPS SOLD SEPARATELY.

Specifications
Installation Manual
260  |  Vapor/Dust Proof Fluorescent Light Fixture
Lighting Applications
  • Industrial
  • Paint Booths
  • Powder Booths
  • Blast Booths
  • Sanding Areas
Certification
  • UL844 (ClassI Div.2 / ClassII Div.2)
  • UL1598
Listings
  • Wet/Damp
  • Paint Spray Listed
Lamps T8 / T8HLO
Output 32 Watts
Ambient -18°C to 40°C
