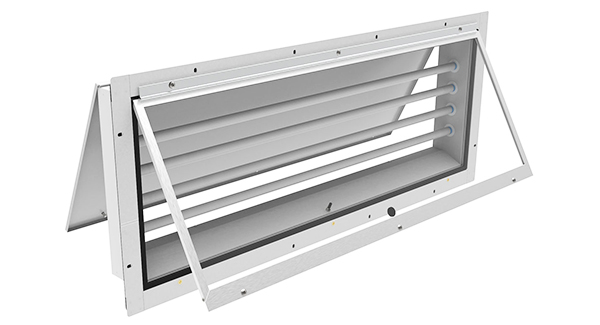

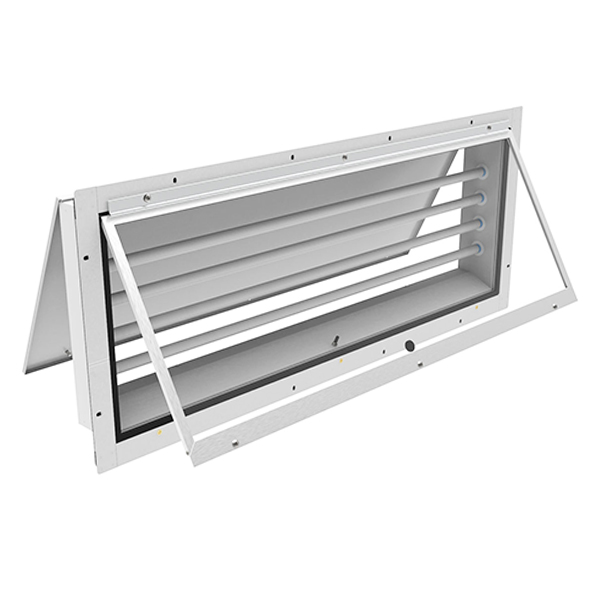

260 LED Panel Mount Vapor/Dust Proof LED Paint Booth Fixture

The 260/261 LED Series is a product designed specifically for Paint Spray Booths. These fixtures can be built with low, standard and high ballast factor ballasts and are available with 4000K and 5000K LEDs. The 260 LED Series allows for both front and rear access using a paint spray cutoff switch when the front door frame is opened. The 261 Series is a rear access only fixture and does not require paint spray cutoff. Must be mounted hinge side up.  LED lamps and 8 Ft. wire whip included. Contact LDPI for availability of 5000K Lamp versions.

Specifications
Installation Manual
260 LED  |  Panel Mount Vapor/Dust Proof LED Paint Booth Light Fixture
Lighting Applications
  • Paint Spray Booth
  • Powder Coating Line/Booth
  • Blast Booths
  • Surface Prep/Sanding Areas
Certification
  • UL844 (ClassI Div.2 / ClassII Div.2)
  • UL1598
  • UL8750
Listings
  • Paint Spray Listed
  • Wet/Damp
Lumens 5,860 to 8,400
CCT / CRI 4,000K, 5,000K  /  Ra>80
Ambient -18°C to 40°C
