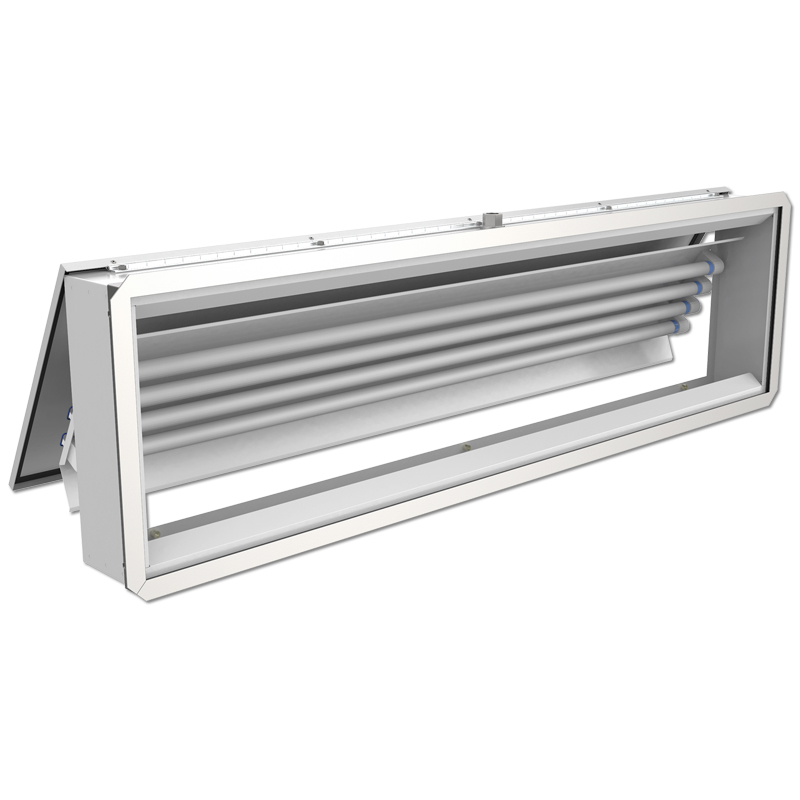

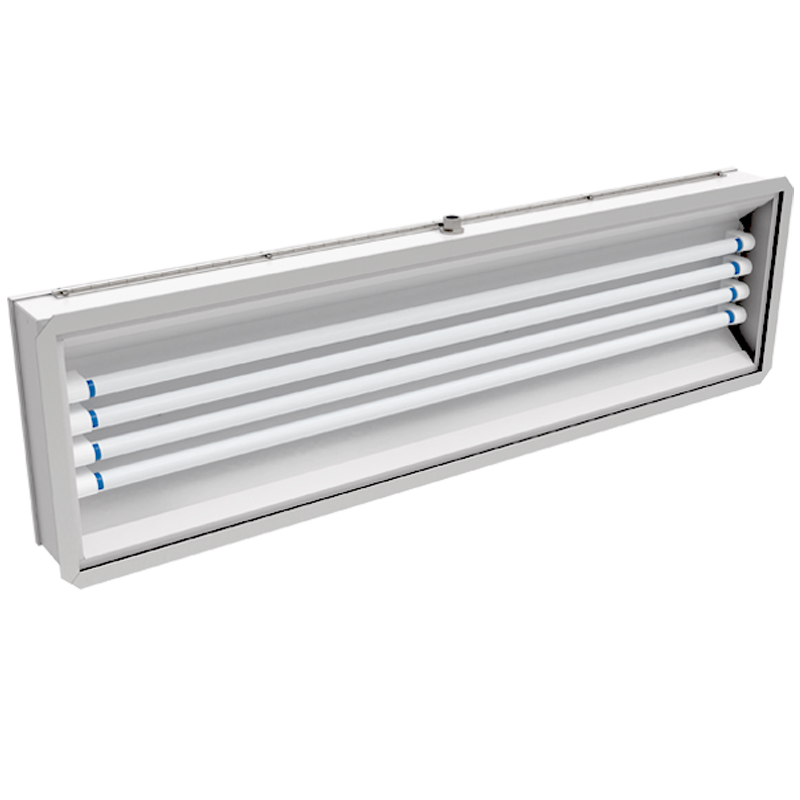

241 LED Rear Access Vapor/Dust Proof LED Paint Booth Light Fixture

The 241 Series is an ideal lighting fixture for a multitude of areas including Paint Spray Booths, Prep Areas, Inspection Areas, Sanding or Machining Areas, even where Grain or Coal Dust may be a concern. This 4 lamp 4’ fixture is available with T8 LED replacement lamps. This fixture series can be built with low and standard ballast factor ballasts and is available with 4,000K and 5,000K LEDs. This series carries multiple listings from UL and ETL for Class I Div. 2 & Class II Div. 2 applications. Must be mounted hinge side up. LED Lamps included. Contact LDPI for availability of 5,000K Lamp versions.

Specifications
Installation Manual
241 LED  |  Rear Access Vapor/Dust Proof LED Paint Booth Light Fixture
Lighting Applications
  • Paint Spray Booth
  • Powder Coating Line/Booth
  • Blast Booths
  • Surface Prep/Sanding Areas
Certification
  • UL844 (ClassI Div.2 / ClassII Div.2)
  • UL1598
  • UL8750
Listings
  • Paint Spray Listed
  • Wet/Damp
Lumens 5,860 to 8,400
CCT / CRI 4,000K, 5,000K  /  Ra>80
Ambient -18°C to 40°C
